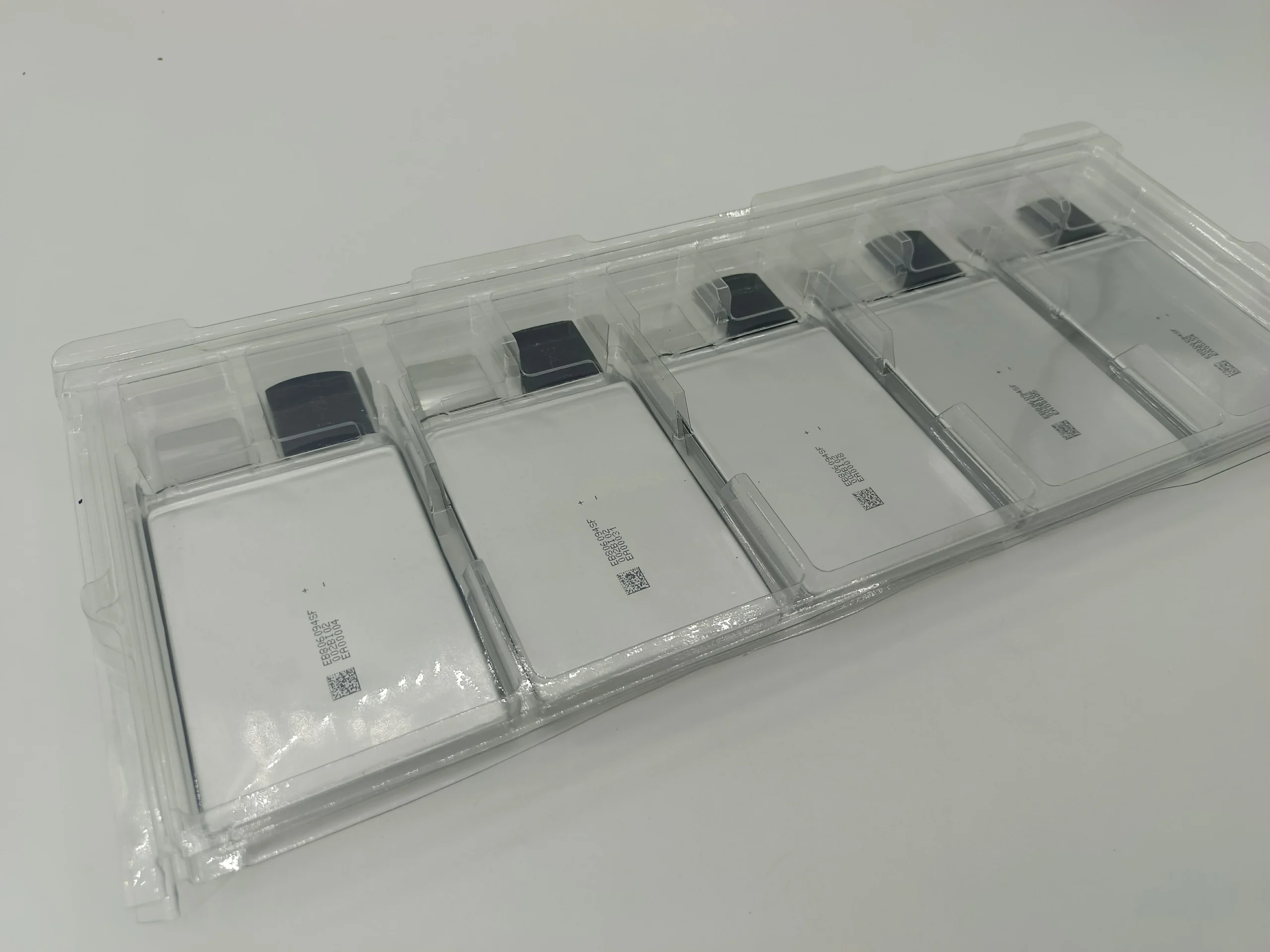

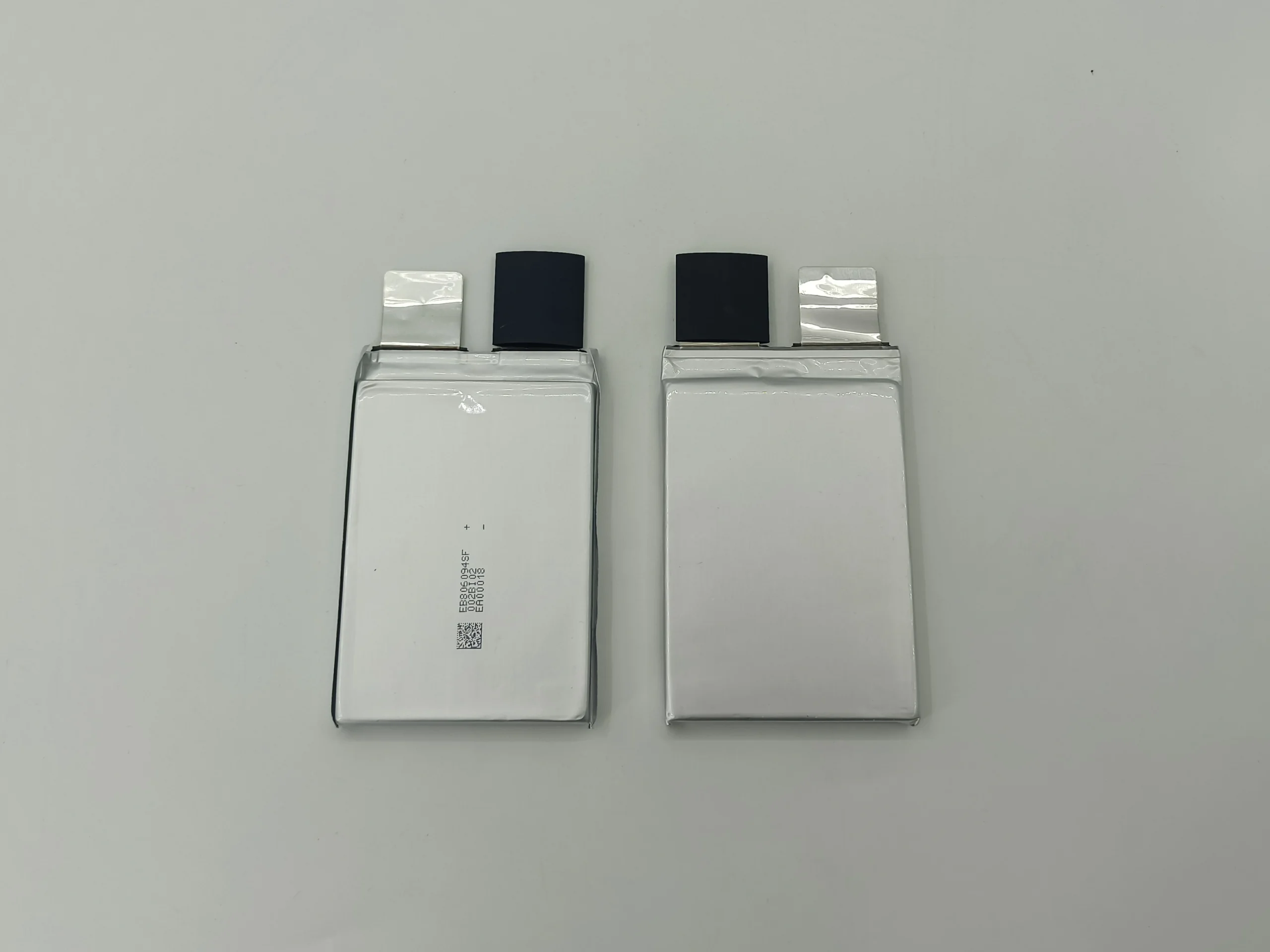

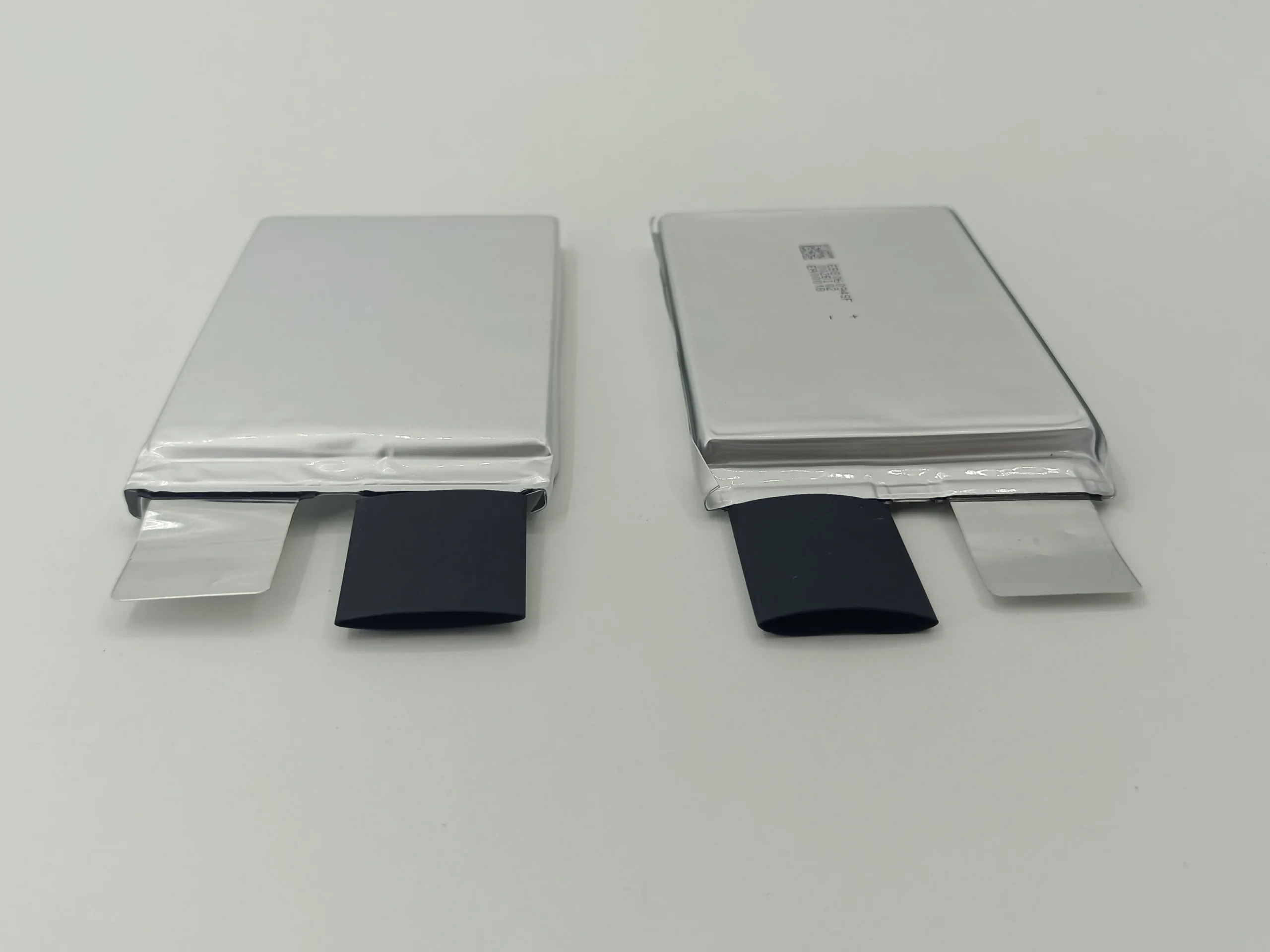

Soft Pack Battery Cells
LFP/LCO/NCM
● Ultra-high Rate
● High Energy Density
● Long Cycle Life
● Excellent Low-Temperature Performance
Key Features:
● Ultra-high Rate
Supports up to 100C continuous discharge and 300C pulse discharge (1s).
● Long Cycle Life
Capable of 3,000 cycles at 1C charge/discharge under room temperature (capacity retention >89.5%), far exceeding traditional lead-acid batteries.
● Exceptional Safety
Highly resistant to fire or explosion in nail penetration and overcharge tests, with excellent thermal stability.
● Wide Temperature Performance
Suitable for applications ranging from -40°C to 65°C and even higher.
Applications:
● Start-Stop Power Supply/Starting Power Supply
○ Vehicle Start-stop/Starting
○ Emergency Starting
○ Medical Equipment
● Power Supply
○ HEV/PHEV
○ Power Tools
○ Electric Motorcycle
● Energy Storage Power Supply
○ Power Grid
○ Base Stations
Key Features:
● High Energy Density
Gravimetric energy density ranges from 165 to 264 Wh/kg.
● Stable Discharge Voltage
Provides smooth power output.
● High Discharge Rates
Supports continuous discharge rates of 10C-35C, with even higher peak rates (50C-80C).
● Relatively Short Cycle Life
Typically 500-1,000 cycles.
Applications:
● FPV Battery
● Drone Power Supply
○ Agricultural Drones
○ Delivery Drones
○ Transport Drones
Key Features:
● High Energy Density
Gravimetric energy density up to 220 Wh/kg, 260 Wh/kg, or even 300 Wh/kg.
● Good Rate Capability
Supports continuous discharge rates of 5C–15C, with even higher pulse rates.
● Excellent Low-Temperature Performance
Approximately 80% capacity retention at –30°C, outperforming LFP.
● Relatively Long Cycle Life
Over 1,500 cycles at 5C charge/7C discharge (capacity retention >80%).
Applications:
● Drone Power Supply
○ Agricultural Drones
○ Delivery Drones
○ Transport Drones
● Low-Temperature Power Supply
○ Extreme Low-temperature Applications
○ Military Equipment
Key Features:
● Ultra-high Rate
Supports up to 100C continuous discharge and 300C pulse discharge (1s).
● Long Cycle Life
Capable of 3,000 cycles at 1C charge/discharge under room temperature (capacity retention >89.5%), far exceeding traditional lead-acid batteries.
● Exceptional Safety
Highly resistant to fire or explosion in nail penetration and overcharge tests, with excellent thermal stability.
● Wide Temperature Performance
Suitable for applications ranging from -40°C to 65°C and even higher.
Applications:
● Start-Stop Power Supply/Starting Power Supply
○ Vehicle Start-stop/Starting
○ Emergency Starting
○ Medical Equipment
● Power Supply
○ HEV/PHEV
○ Power Tools
○ Electric Motorcycle
● Energy Storage Power Supply
○ Power Grid
○ Base Stations
Key Features:
● High Energy Density
Gravimetric energy density ranges from 165 to 264 Wh/kg.
● Stable Discharge Voltage
Provides smooth power output.
● High Discharge Rates
Supports continuous discharge rates of 10C-35C, with even higher peak rates (50C-80C).
● Relatively Short Cycle Life
Typically 500-1,000 cycles.
Applications:
● FPV Battery
● Drone Power Supply
○ Agricultural Drones
○ Delivery Drones
○ Transport Drones
Key Features:
● High Energy Density
Gravimetric energy density up to 220 Wh/kg, 260 Wh/kg, or even 300 Wh/kg.
● Good Rate Capability
Supports continuous discharge rates of 5C–15C, with even higher pulse rates.
● Excellent Low-Temperature Performance
Approximately 80% capacity retention at –30°C, outperforming LFP.
● Relatively Long Cycle Life
Over 1,500 cycles at 5C charge/7C discharge (capacity retention >80%).
Applications:
● Drone Power Supply
○ Agricultural Drones
○ Delivery Drones
○ Transport Drones
● Low-Temperature Power Supply
○ Extreme Low-temperature Applications
○ Military Equipment
