Introduction
features
- High Current Discharge & Low Temperature Rise.
- Strong deep discharge, 1C discharge DOD reaches 100%.
- Safety and Stability.
application
- FPV traversing machine
- model aircraft UAV
- medical equipment
- smart home
- electronic toy car
Introduction
features
- High Current Discharge & Low Temperature Rise.
- Strong deep discharge, 1C discharge DOD reaches 100%.
- Safety and Stability.
application
- FPV traversing machine
- model aircraft UAV
- medical equipment
- smart home
- electronic toy car
ALL MODELS
Model | Capacity | Energy(Wh) | Cont. Discharge Current | Max Discharge Current (A/0.3S) | Size(L*W*H)±2mm | Weight (g) | Energy Density (Wh/kg） |

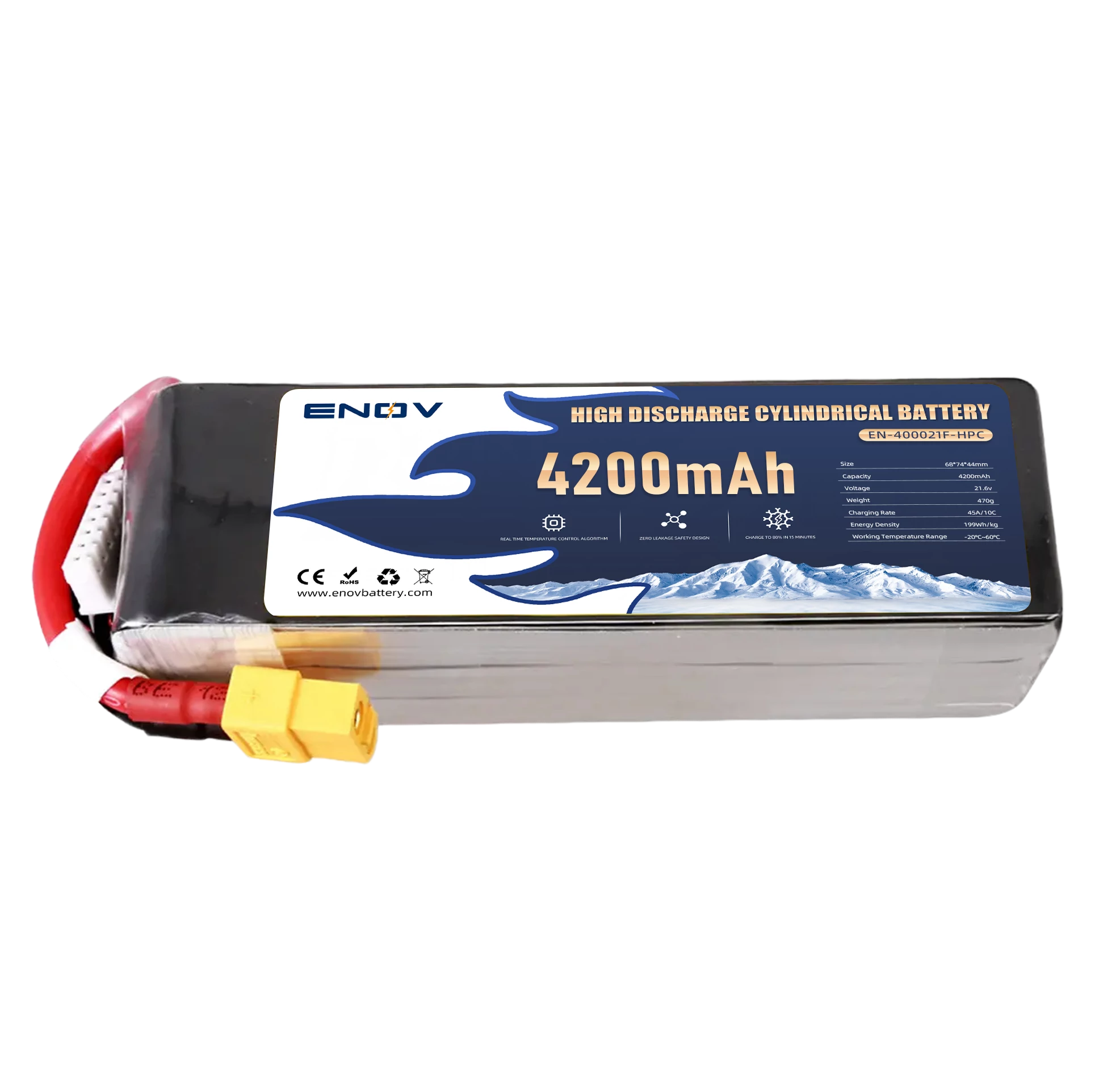

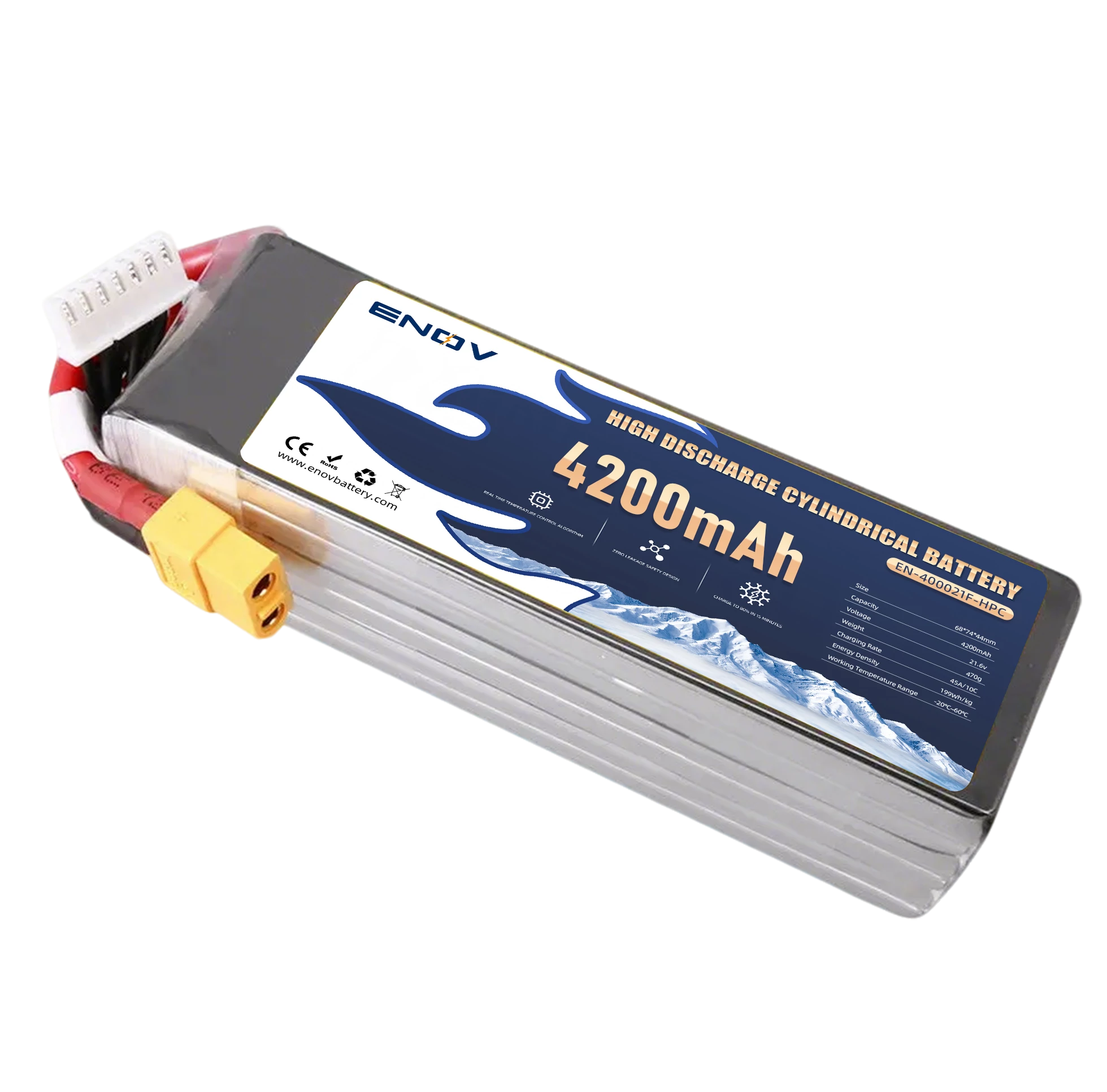

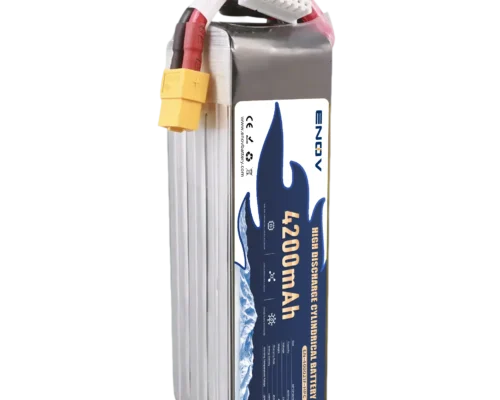

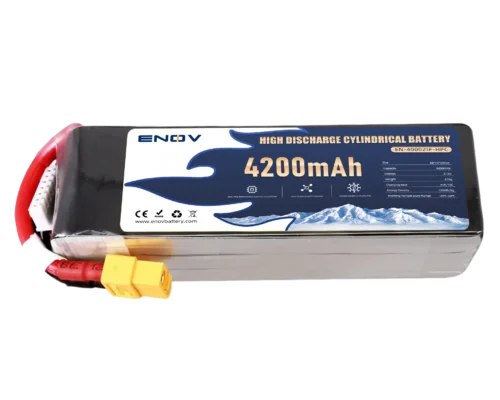

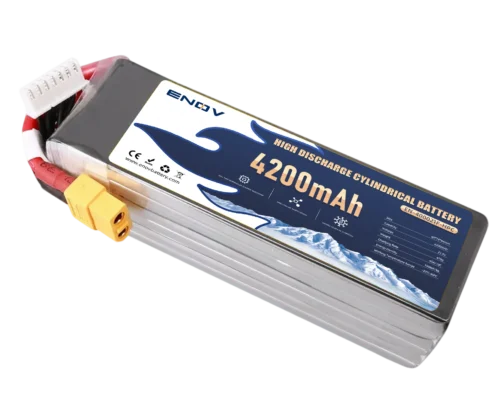

EN-400021F-HPC | 4200mAh 21.6V 6S1P | 90.72 | 45A/10C | 90A/20C | 68*74*44 | 470 | 199 |
EN-400028H-HPC | 4200mAh 28.8V 8S1P | 120.96 | 89*74*44 | 610 | 205 | ||
EN-500021F-HPC | 5000mAh 21.6V 6S1P | 108 | 30A/10C | 60A/20C | 68*74*44 | 476 | 234 |
EN-500028H-HPC | 5000mAh 28.8V 8S1P | 144 | 50A/10C | 100A/20C | 89*74*44 | 618 | 240 |
EN-800021F-HPC | 8400mAh 21.6V 6S2P | 181.44 | 90A/10C | 180A/20C | 136*74*44 | 900 | 208 |
EN-800028H-HPC | 8400mAh 28.8V 8S2P | 241.92 | 178*74*44 | 1180 | 211 | ||
EN-1A0021F-HPC | 10000mAh 21.6V 6S2P | 216 | 100A/10C | 200A/20C | 136*74*44 | 912 | 247 |
EN-1A0028H-HPC | 10000mAh 28.8V 8S2P | 288 | 178*74*44 | 1196 | 248 |
datasheet-high discharge cylindrical battery (HPC)
