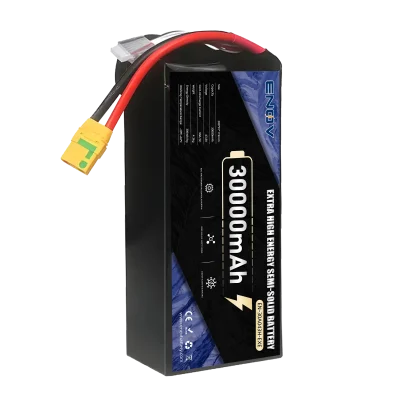

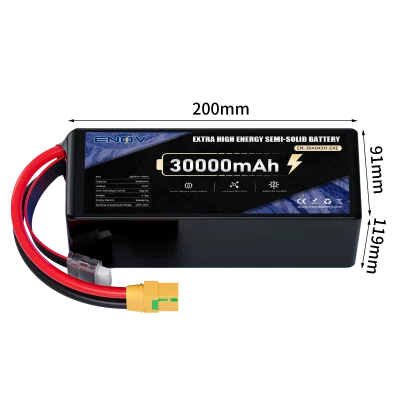

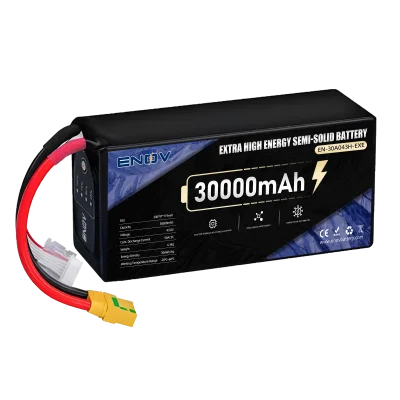

Enov UAV battery has a lightweight structural design, ultra-high energy density, stable continuous discharge, customized ultra-high instantaneous discharge, wide temperature working range, stable charge and discharge. Eonv UAV batteries support 10C continuous discharge and 120C pulse discharge (3 seconds). With ultra-high energy density (220-300Wh/kg) as its core advantage, Enov UAV batteries can meet the needs of long-term endurance scenarios such as plant protection drones and transport drones, while maintaining stable emission performance in extremely low temperature environments (-40℃).
specifications
| capacity | energy (Wh) | cont. discharge current (a) | max discharge current (a/0.3S) | Dimensions (length×width×height) | weight (Kg) | energy density (Wh/Kg) |
|---|---|---|---|---|---|---|
|
30000mAh 43.8V 12S1P |
1314 |
90A/3C
|
300A/10C |
200×91×199mm |
4.30 |
306 |
advantage
Ultralight, Capacity Increase 20%+
Ultra-high Energy Density 320Wh/kg+
ContINUous Discharge 3C+
Burst Discharge 10C+
Semi-solid Polymer
APPLICATION
Fixed wing UAV
Logistics UAV
Plant protection UAV
agricultural UAV
Authentication
OTHER MODELS
| Model | Nominal voltage (V) | Nominal capacity (Ah) | Dimensions (length×width×height) | Extend Dimensions (length×width×height) | weight (Kg) | CCA (Amps) | CA (Amps) | Alternative lead-acid batteries | Learn more |
|---|---|---|---|---|---|---|---|---|---|
|
EN12-BT010B |
12.8 |
1.0 |
98×56×85mm |
/ |
0.3 |
80 |
40 |
YB3L-B |
/ |
|
EN12-BT016B |
12.8 |
1.6 |
98×56×85mm |
/ |
0.4 |
128 |
64 |
YB3L-B |
/ |
|
EN12-BT025B |
12.8 |
2.5 |
113×70×85mm |
113×70×105mm; 113×70×125mm |
0.6 |
150 |
75 |
YTX14-BS, ETX14-BS, CTX14-BS, YTX12-BS, YTX16-BS, YTX20-BS |
|
|
EN12-BT035B |
12.8 |
3.5 |
113×70×85mm |
113×70×105mm; 113×70×125mm |
0.8 |
210 |
105 |
YTX4L-BS, YTX5L-BS, YTZ5S-BS, YTZ6-BS
, YTZ7S-BS, YTX7L |
|
|
EN12-BT040B |
12.8 |
4.0 |
150×65×93mm |
150×65×105mm; 150×70×105mm; 150×69×130mm; 150×70×145mm |
0.9 |
240 |
120 |
YT7B-BS, YT9B-BS,
YT12B-BS, YT14B-BS |
|
|
EN12-BT040B-A |
12.8 |
4.0 |
150×87×93mm |
150×87×105mm; 150×87×120mm; 150×87×130mm |
0.9 |
240 |
120 |
YTX7A-BS, YTX9-BS, YTZ10S-BS, YT12A-B2, YTZ12S-BS, YTZ14S-BS |
|
|
EN12-BT040B-N |
12.8 |
4.0 |
134×75×133mm |
134×89×163mm |
0.9 |
240 |
120 |
YT14AH-BS, 12N7-3B,
12N7-4A, 12N7-4B,
6MF7-BS, 6MF9-BS |
|
|
EN12-BT050B |
12.8 |
5.0 |
150×87×93mm |
150×87×105mm; 150×87×120mm; 150×87×130mm |
1.1 |
300 |
150 |
YTX7A-BS, YTX9-BS, YTZ10S-BS, YT12A-B2, YTZ12S-BS, YTZ14S-BS |
|
|
EN12-BT060B |
12.8 |
6.0 |
150×87×93mm |
150×87×105mm; 150×87×120mm; 150×87×130mm |
1.2 |
360 |
180 |
YTX7A-BS, YTX9-BS, YTZ10S-BS, YT12A-B2, YTX12-BS, YTZ12S-BS, YTZ14S-BS |
|
|
EN12-BT070B |
12.8 |
7.0 |
134×75×133mm |
134×89×163mm |
1.3 |
420 |
210 |
YT14AH-BS, 12N7-3B,
12N7-4A, 12N7-4B,
6MF7-BS, 6MF9-BS |
|
|
EN12-BT080B |
12.8 |
8.0 |
150×87×130mm |
150×87×1454mm; 150×87×155mm; 175×87×155mm |
1.4 |
480 |
240 |
YTX14-BS, ETX14-BS, CTX14-BS, YTX12-BS, YTX16-BS, YTX20-BS |
|
|
EN12-BT120B |
12.8 |
12.0 |
175×87×155mm |
205×87×162mm |
2.0 |
720 |
360 |
YTX20-BS, YTX24HL-BS |
Other series
INDUSTRIAL BATTERY
HIGH VOLTAGE LIPO BATTERY
eVTOL/exploration Uavs/meteorological Uavs/decoy Uavs/mapping Uavs and inspection/surveillance Uavs
HIGH DISCHARGY LIPO BATTERY
Multi-axis UAV helicopter, fixed-wing UAV, aerial camera, all kinds of agricultural UAV, meteorological UAV
FPV BATTERY
HIGH DISCHARGY LIPO BATTERY
FPV traversing machine/model aircraft UAV/remote control car/remote control boat/electric helicopter
HIGH DISCHARGY CYLINDRICAL BATTERY
FPV traversing machine/model aircraft UAV/medical equipment/smart home, etc
