HIGH VOLTAGE LIPO BATTERY

PROFILE

Enov UAV battery has the most advanced UAV battery new technology, it has a lightweight structural design, ultra-high energy density, stable continuous discharge, customized ultra-high instantaneous discharge, wide temperature working range, stable charge and discharge, battery materials can choose high nickel terpolymer positive/silicon carbon negative material system combined with semi-solid battery technology. Or choose a more mature application of more UAV lithium battery technology, available UAV battery nominal voltage 3.7V, capacity 18.0Ah ~ 30.0Ah, support 10C continuous discharge and 120C pulse discharge (3 seconds). With ultra-high energy density (220-300Wh/kg) as its core advantage, Enov UAV batteries can meet the needs of long-term endurance scenarios such as plant protection drones and transport drones, while maintaining stable emission performance in extremely low temperature environments (-40℃). Products have passed ISO9001 quality management system certification, support custom design (such as size, power, temperature range, etc.), to meet the efficient power requirements of various industrial UAVs

advantage

High Discharge Voltage Platform 3.9V

High Discharge,C-rate 10C+

High Energy Density 260Wh/kg+

specification

Model capacity energy (Wh) cont. discharge current (a) max discharge current (a/0.3S) Dimensions (length×width×height) weight (Kg) energy density (Wh/Kg) Learn more
EN-25A023A-EHV
25000mAh 23.1V 6S1P
577.5
250A/10C
500A/20C
205×93×67mm
2.54
228
EN-25A046B-EHV
25000mAh 46.2V 12S1P
1155
250A/10C
500A/20C
205×93×130mm
4.88
237
/
EN-25A053I-EHV
25000mAh 53.9V 14S1P
1347.5
300A/10C
600A/20C
205×93×151mm
5.66
239
/
EN-30A023D-EHV
30000mAh 23.4V 6S1P
702
300A/10C
600A/20C
208×101×70mm
2.87
245
/
EN-30A046H-EHV
30000mAh 46.8V 12S1P
1404
300A/10C
600A/20C
208×101×136mm
5.54
254
EN-30A054F-EHV
30000mAh 54.6V 14S1P
1638
300A/10C
600A/20C
208×101×158mm
6.43
255
/
EN-32A023D-EHV
32000mAh 23.4V 6S1P
748.8
300A/10C
600A/20C
222×101×70mm
3.04
246
/
EN-32A046H-EHV
32000mAh 46.8V 12S1P
1497.6
320A/10C
640A/20C
222×101×136mm
5.89
255
/
EN-32A054F-EHV
32000mAh 54.6V 14S1P
1747.2
320A/10C
640A/20C
222×101×158mm
6.84
256
EN-50A023A-EHV
50000mAh 23.1V 6S2P
1155
500A/10C
1000A/20C
205×93×130mm
4.88
237
EN-50A046B-EHV
50000mAh 46.2V 12S2P
2310
500A/10C
1000A/20C
205×93×256mm/ 205×185×128mm
9.56
242
/
EN-50A053I-EHV
50000mAh 53.9V 14S2P
2695
500A/10C
1000A/20C
205×93×298mm/ 205×185×149mm
11.12
243
/
EN-64A046H-EHV
64000mAh 46.8V 12S2P
2995
640A/10C
1280A/20C
222×101×268mm/ 222×200×135mm
12.18
246
EN-64A070B-EHV
64000mAh 70.2V 18S2P
4493
640A/10C
1280A/20C
222×101×400mm/ 222×200×201mm
18.06
249
/
EN-60A046H-EHV
60000mAh 46.8V 12S2P
2802
600A/10C
1200A/20C
208×101×269mm/ 208×200×137mm
10.88
259
/
EN-60A070B-EHV
60000mAh 70.2V 18S2P
4212
600A/10C
1200A/20C
208×101×401mm/ 208×200×203mm
16.22
260
EN-75A046B-EHV
75000mAh 46.2V 12S3P
3465
750A/10C
1200A/20C
205×93×383mm/ 205×185×194mm
14.24
244
EN-75A069C-EHV
75000mAh 69.3V 18S3P
5197.5
750A/10C
1200A/20C
205×93×572mm/ 205×185×194mm
21.26
245
EN-90A046H-EHV
90000mAh 46.8V 12S3P
4212
900A/10C
1200A/20C
208×101×396mm/ 208×200×187mm
16.22
260
/
EN-90A070B-EHV
90000mAh 70.2V 18S3P
6318
900A/10C
1200A/20C
208×101×599mm/ 208×200×302mm
24.23
261

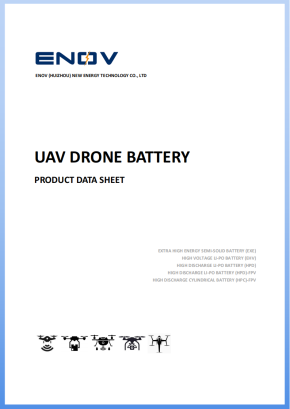

UAV DRONE BATTERY PRODUCT DATA SHEET_00

data sheet of HIGH VOLTAGE LIPO BATTERY

APPLICATION

Fixed wing UAV

Logistics UAV

Plant protection UAV

agricultural UAV
